ATS File I/O

Functions for handling loading and saving of .ats files.

.ats files are written in binary format using double floats.

The expected structure of a .ats is:

ATS Header (all double floats)
ATS_MAGIC_NUMBER
sampling-rate (samples/sec)
frame-size (samples)
window-size (samples)
partials (number)
frames (number)
ampmax (max. amplitude)
frqmax (max. frequency)
dur (duration)
type (# specifying frame type, see below)

The frame data immediately follows the header, again all double floats, frame by frame, with a format matching the type (int) as specified in the header

ATS frames can be one of four different types:

TYPE 1: NO phase & NO noise	TYPE 2: WITH phase & NO noise	TYPE 3: NO phase & WITH noise	TYPE 4: WITH phase & WITH noise
time (frame starting time)	time (frame starting time)	time (frame starting time)	time (frame starting time)
amp (partial #0 amplitude)	amp (partial #0 amplitude)	amp (partial #0 amplitude)	amp (partial #0 amplitude)
frq (partial #0 frequency)	frq (partial #0 frequency)	frq (partial #0 frequency)	frq (partial #0 frequency)
…	pha (partial #0 phase)	…	pha (partial #0 phase)
amp (partial #n amplitude)	…	amp (partial #n amplitude)	…
frq (partial #n frequency)	amp (partial #n amplitude)	frq (partial #n frequency)	amp (partial #n amplitude)
	frq (partial #n frequency)	noise (band #0 energy)	frq (partial #n frequency)
	pha (partial #n phase)	…	pha (partial #n phase)
		noise (band #n energy)	noise (band #0 energy)
			…
			noise (band #n energy)

pyatsyn.ats_io.ATS_MAGIC_NUMBER

‘magic’ number used to validate and check endianness when using .ats files: 123.0

Type

float

pyatsyn.ats_io.ats_info(file, partials_info=False)

Function to print information about a .ats to the stdout

Parameters

• file (str) – an .ats file to print information about

• partials_info (bool, optional) – whether to include frq and amp averages about each partial in the output (default: False)

pyatsyn.ats_io.ats_info_CLI()

Command line wrapper for ats_info

Example

Display usage details with help flag

$ pyatsyn-info -h

Print the header information of a .ats file

$ pyatsyn-info example.ats

Print the header information and partials information of a .ats file

$ pyatsyn-info example.ats -p

pyatsyn.ats_io.ats_load(file, optimize=False, min_gap_size=None, min_segment_length=None, amp_threshold=None, highest_frequency=None, lowest_frequency=None)

Function to load a .ats file into python

Loads a .ats file into python and provides routines to re-optimize the AtsSound data if required.

Parameters

• file (str) – filepath to .ats file to load

• optimize (bool, optional) – determined whether to call optimize upon load (default: True)

• min_gap_size (int, optional) – when optimizing, tracked partial gaps smaller than or equal to this (in frames) will be interpolated and filled. If None, no gap filling will occur (default: None)

• amp_threshold (float, optional) – minimum amplitude threshold used during optimization to prune tracks. If None, no amplitude thresholding will occur (default: None)

• highest_frequency (float, optional) – maximum frequency threshold used during optimization to prune tracks. If None, no maximum frequency thresholding will occur (default: None)

• lowest_frequency (float, optional) – minimum frequency threshold used during optimization to prune tracks. If None, no minimum frequency thresholding will occur (default: None)

Returns

the loaded ats data

Return type

AtsSound

Raises

ValueError – if file is not a compatible ATS format (i.e., the ATS magic number was not decodable)

pyatsyn.ats_io.ats_save(sound, file, save_phase=True, save_noise=True)

Function to save an AtsSound to a file

Parameters

• sound (AtsSound) – ats sound object to save

• file (str) – file path to save to

• save_phase (bool, optional) – whether to include phase data in file output (default: True)

• save_noise (bool, optional) – whether to include noise band energy data in file output (default: True)

ats_structure

Data Abstraction for ATS

class pyatsyn.ats_structure.AtsPeak(amp=0.0, frq=0.0, pha=0.0, smr=0.0, track=0, db_spl=0.0, barkfrq=0.0, slope_r=0.0, asleep_for=None, duration=1)

Bases: object

Data abstraction for storing single peak, single timepoint data for peak tracking

Used primarily as a data-store during the peak tracking phase of analysis.

amp

the amplitude of the peak

Type

float

frq

the frequency (in Hz) of the peak

Type

float

pha

the phase (in radians) of the peak

Type

float

smr

the signal-to-mask ratio (in dB SPL) of the peak

Type

float

track

the corresponding tracked partial the peak is assigned to

Type

int

db_spl

peak amplitude in dB SPL (used during SMR evaluation)

Type

float

bark_frq

frequency in bark scale (used during SMR evaluation)

Type

float

slope_r

right slope of masking curve (used during SMR evaluation)

Type

float

asleep_for

sleep counter (in frames) (used during peak tracking)

Type

int

duration

active counter (in frames) (used during peak tracking)

Type

float

frq_max

maximum frequency (used in track data during optimization)

Type

float

amp_max

maximum amplitude (used in track data during optimization)

Type

float

frq_min

minimum frequency (used in track data during optimization)

Type

float

clone()

Function to return a copy of an AtsSound

Returns

a copy of the calling AtsPeak object

Return type

AtsPeak

class pyatsyn.ats_structure.AtsSound(sampling_rate, frame_size, window_size, partials, frames, dur, has_phase=True)

Bases: object

Main data abstraction for ATS

Parameters

• sampling_rate (int) – sampling rate (samples/sec)

• frame_size (int) – interframe distance (in samples)

• window_size (int) – size (in samples) of the FFT window used to analyze the sound

• partials (int) – number of partials/tracks stored

• frames (int) – number of frames of analysis

• dur (float) – duration (in s) of the sound

• has_phase (bool, optional) – whether to initial phase information data structure (default: True)

sampling_rate

sampling rate (samples/sec)

Type

int

frame_size

interframe distance (in samples)

Type

int

window_size

size (in samples) of the FFT window used to analyze the sound

Type

int

partials

number of partials/tracks stored

Type

int

frames

number of frames of analysis

Type

int

dur

duration (in s) of the sound

Type

float

optimized

whether the object has been through optimization yet

Type

bool

amp_max

maximum amplitude of the sound

Type

float

frq_max

maximum frequency (in Hz) of the sound

Type

float

frq_av

1D array of average frequency (in Hz) for each partial

Type

ndarray[float]

amp_av

1D array of average amplitude for each partial

Type

ndarray[float]

time

1D array of the time (in s) corresponding to each frame

Type

float

frq

2D array storing frequency (in Hz) for each partial at each frame

Type

ndarray[float]

amp

2D array storing amplitude for each partial at each frame

Type

ndarray[float]

pha

2D array storing phase (in radians) for each partial at each frame. None if no phase information is stored.

Type

ndarray[float]

energy

2D array for storing noise band energy into each partials at each frame. NOTE: Currently only implemented for legacy purposes. Empty list if no noise information is stored.

Type

ndarray[float]

band_energy

2D array of noise band energies for each band at each frame. Empty list if no noise information is stored.

Type

ndarray[float]

bands

1D array of unique indices to label each noise band. Empty list if no noise information is stored.

Type

ndarray[int]

clone()

Function to return a deep copy of an AtsSound

Returns

a deep copy of the calling AtsSound object

Return type

AtsSound

optimize(min_gap_size=None, min_segment_length=None, amp_threshold=None, highest_frequency=None, lowest_frequency=None)

Function to run optimization routines on the frames of partial data stored in the object.

The optimizations performed are:

• fill gaps of min_gap_size or shorter

• trim short partials

• calculate and store maximum and average frq and amp

• prune partials below amplitude threshold

• prune partials outside frequency constraints

• re-order partials according to average frq

Parameters

• min_gap_size (int, optional) – partial gaps longer than this (in frames) will not be interpolated and filled in. If None, this sub-optimization will be skipped. (default: None)

• min_segment_length (int, optional) – minimal size (in frames) of a valid partial segment, otherwise it is pruned. If None, this sub-optimization will be skipped. (default: None)

• amp_threshold (float, optional) – amplitude threshold used to prune partials. If None, this sub-optimization will be skipped. (default: None)

• highest_frequency (float) – upper frequency threshold, tracks with maxima above this will be pruned. If None, this sub-optimization will be skipped. (default: None)

• lowest_frequency (float) – lower frequency threshold, tracks with minima below this will be pruned. If None, this sub-optimization will be skipped. (default: None)

ats_synth

Synthesizer Methods for Rendering .ats Files to Audio

pyatsyn.ats_synth.synth(ats_snd, normalize=False, compute_phase=True, export_file=None, sine_pct=1.0, noise_pct=0.0, noise_bands=None, normalize_sine=False, normalize_noise=False)

Function to synthesize audio from AtsSound

Sine generator bank and band-limited noise synthesizer for .ats files. When phase information is ignored phase is linearly interpolated between consecutive frequencies from an initial phase of 0.0 at the first non-zero amplitude for that partial.

The method for cubic polynomial interpolation of phase used is credited to:

MR. McAulay and T. Quatieri, “Speech analysis/Synthesis based on a sinusoidal representation,” in IEEE Transactions on Acoustics, Speech, and Signal Processing, vol. 34, no. 4, pp. 744-754, August 1986

doi: 10.1109/TASSP.1986.1164910.

Parameters

• ats_snd (AtsSound) – the .ats file used to synthesize

• normalize (bool, optional) – normalize sound to ±1 before output (default: False)

• compute_phase (bool, optional) – use cubic polynomial interpolation of phase information during synthesis, if available (default: True)

• export_file (str) – audio file path to write synthesis to, or None for no file output (default: None)

• sine_pct (float) – percentage of sine components to mix into output (default: 1.0)

• noise_pct (float) – percentage of noise components to mix into output (default: 0.0)

• noise_bands (ndarray[float]) – 1D array of band edges to use for noise analysis. Currently using other than 25 bands (i.e. 26 edges) is not fully supported. If None, ATS_CRITICAL_BAND_EDGES will be used. (default: None)

• normalize_sine (bool) – normalize sine components to ±1 before mixing (default: False)

• normalize_noise (bool) – normalize noise componenets to ±1 before mixing (default: False)

Returns

A 1D array of amplitudes representing the synthesized sound

Return type

ndarray[float]

pyatsyn.ats_synth.synth_CLI()

Command line wrapper for synth

Example

Display usage details with help flag

$ pyatsyn-synth -h

Generate a wav file from a sine generator bank from an ats file

$ pyatsyn-synth example.ats example.wav

Generate a wav file from a sine generator bank and band-limited noise using from an ats file

$ pyatsyn-synth example.ats example.wav --noise 1.0

atsa module

critical_bands

Critical Bands and Signal-to-Mask Ratio Evaluation

This module is used to evaluate critical band masking for signal-to-mask ratio calculations

pyatsyn.atsa.critical_bands.ATS_CRITICAL_BAND_EDGES

1D array containing 26 frequencies that distinguish the default 25 critical bands

Type

ndarray[float]

pyatsyn.atsa.critical_bands.compute_slope_r(masker_amp_db, slope_l=-27.0)

Function to compute right slope of triangular mask

Computes the right slope of mask, dependent on the level of the masker

Parameters

• masker_amp_db (float) – Amplitude (in dB) of the masker peak

• slope_l (float, optional) – slope (in dB / bark) of the lower frequency side of the masking triangle

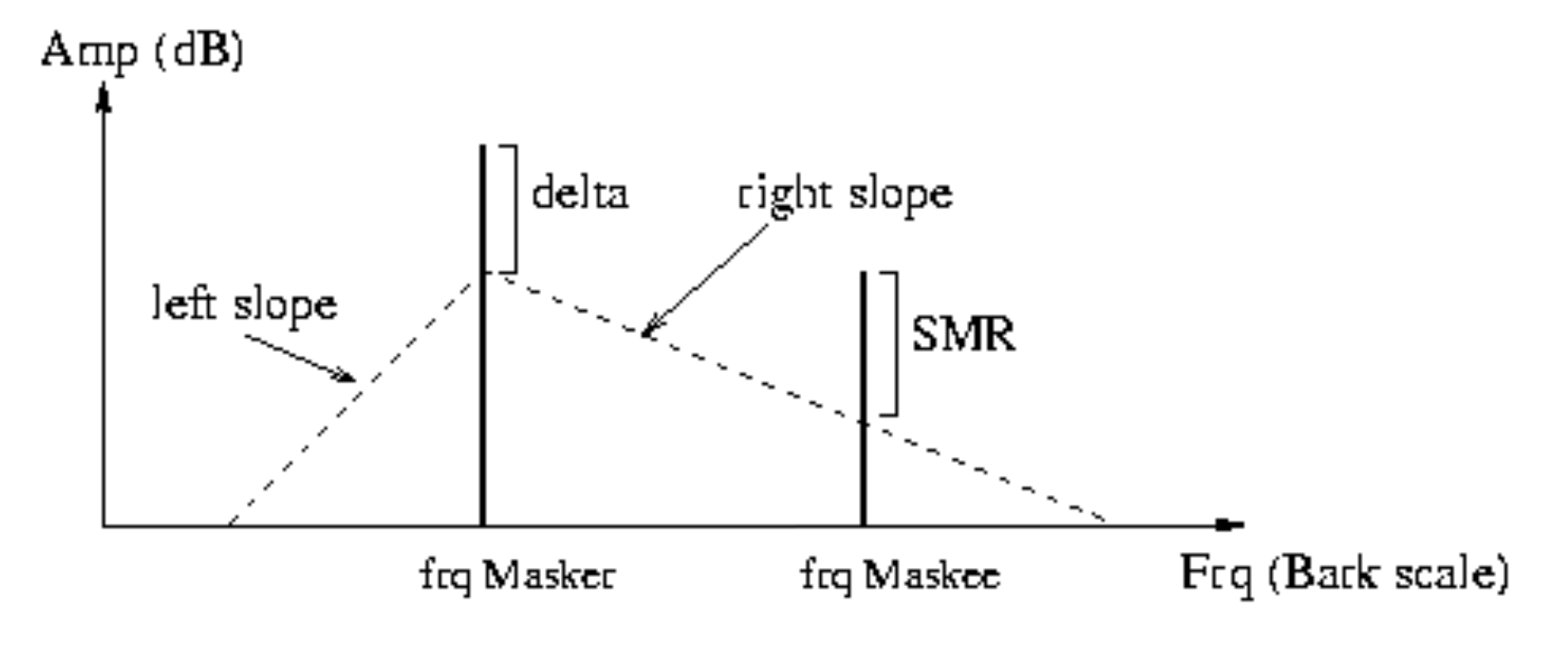

pyatsyn.atsa.critical_bands.evaluate_smr(peaks, slope_l=-27.0, delta_db=-50)

Function to evaluate signal-to-mask ratio for the given peaks

This function evaluates masking values (SMR) for AtsPeak in list peaks Iteratively the parameters will be use to generate a triangular mask with a primary vertex at the frequency of, and at delta_dB below the amplitude of the masker.

All other peaks are evaluated based on the triangular edges descending from the primary vertex according to slope_l for lower frequencies, and a calculated slope for higher frequencies. Maskee amplitudes proportions above this edge are then assigned to the maskee peak’s smr property. By the end of the iteration, the largest smr seen as maskee is kept in the peak’s smr property.

Parameters

• peaks (Iterable[AtsPeak]) – An iterable collection of AtsPeaks that will have their smr attributes updated

• slope_l (float, optional) – A float (in dB/bark) to dictate the slope of the left side of the mask (default: -27.0)

• delta_db (float, optional) – A float (in dB) that sets the amplitude threshold for the masking curves Must be (<= 0dB) (default: -50)

Raises

ValueError – If delta_db is not less than or equal to 0.

pyatsyn.atsa.critical_bands.find_band(freq)

Function to retrieve lower band edge in ATS_CRITICAL_BAND_EDGES

Parameters

freq (float) – A frequency (in Hz) to find the related band in ATS_CRITICAL_BAND_EDGES for

Returns

index into ATS_CRITICAL_BAND_EDGES that marks the lower band edge for the given freq

Return type

int

Raises

LookupError – if the frequency given is outside the range of the lowest or highest edge in ATS_CRITICAL_BAND_EDGES

pyatsyn.atsa.critical_bands.frq_to_bark(freq)

Function to convert frequency from Hz to bark scale

This function will convert frequency from Hz to bark scale, a psychoacoustical scale used for subjective measurements of loudness.

Parameters

freq (float) – A frequency (in Hz) to convert to bark scale

Returns

the frequency in bark scale

Return type

float

peak_detect

Single-Frame Peak Detection from FFT Data

Functions to process FFT data and extract peaks

pyatsyn.atsa.peak_detect.parabolic_interp(alpha, beta, gamma)

Function to obtain a parabolically modeled maximum from 3 points

Given 3 evenly-spaced points, a parabolic interpolation scheme is used to calculate a coordinate frequency offset and maximum amplitude at the estimated parabolic apex.

Expected: alpha <= beta <= gamma

Parameters

• alpha (float) – Amplitude at lower frequency

• beta (float) – Amplitude at center frequency

• gamma (float) – Amplitude at upper frequency

Returns

• offset (float) – Frequency offset (in samples) relative to center frequency bin

• height (float) – Amplitude of estimated parabolic apex

pyatsyn.atsa.peak_detect.peak_detection(fftfreqs, fftmags, fftphases, lowest_bin=None, highest_bin=None, lowest_magnitude=None)

Function to detect peaks from FFT data

This function scans for peaks in FFT frequency data, returning found peaks that pass constraint criteria. Because FFT data is restricted to discrete bins, interpolation is used to provide a more precise estimation of amplitude, phase, and frequency.

Parameters

• fftfreqs (ndarray[float64]) – A 1D array of frequency labels (in Hz) corresponding to fftmags and fftphases

• fftmags (ndarray[float64]) – A 1D array of FFT magnitudes for each frequency in fftfreqs; this is the data where we search for the peaks.

• fftphases (ndarray[float64]) – A 1D array of FFT phases (in radians) for each index in fftfreqs and fftmags

• lowest_bin (int, optional) – Lower limit bin index used to restrict what bins of fftfreqs are searched (default: None)

• highest_bin (int, optional) – Upper limit bin index used to restrict what bins of fftfreqs are searched (default: None)

• lowest_magnitude (float, optional) – Minimum amplitude threshold that must be exceeded for a peak to validly detected (default: None)

Returns

A list of AtsPeak constructed from detected peaks

Return type

list[AtsPeak]

pyatsyn.atsa.peak_detect.phase_correct(left, right, offset)

Function for angular interpolation of phase

Parameters

• left (float) – Phase value (in radians) to interpolate between

• right (float) – Other phase value (in radians) to interpolate between

• offset (float) – Phase offset (in samples) between left and right at which to calculate

Returns

interpolated phase (in radians)

Return type

float

peak_tracking

Peak Tracking algorithms to assemble spectral trajectories

Peaks issued by the peak detection algorithm need to be connected and translated into spectral trajectories. This process involves the evaluation of the possible candidates to continue trajectories on a frame-by-frame basis.

This is done using tracks that keep information of recent average values for each of the trajectory parameters. The length of the tracks is adjustable and has to be tuned depending on the characteristics of the analyzed sound.

A Gale-Shapley stable matching algorithm is used to determine the best candidate pair using a the cost criteria:

\(cost = \frac{|P_{freq} - T_{freq}| + \alpha * |P_{smr} - T_{smr}|}{1 + \alpha}\)

where \(P_{freq}\) is the candidate peak frequency, and \(P_{smr}\) its SMR, \(T_{freq}\) is the track frequency, and \(T_{smr}\) its SMR, both averaged over the track length (typically 3 frames). \(\alpha\) is a coefficient controlling how much the SMR deviation affects the cost.

The use of the SMR continuation as a parameter for the peak tracking process is based upon psychoacoustic temporal masking phenomena. Conceptually, we assume that masking profiles of stable sinusoidal trajectories can only evolve at slow rate (no sudden changes). This is true for analysis performed with hop sizes between 10 and 50 milliseconds, which is comparable to the average duration of pre- and post-making effects.

New tracks get created from orphan peaks (the ones that were not incorporated to any existing tracks), and tracks which couldn’t find continuing peaks are set to sleep.

class pyatsyn.atsa.peak_tracking.MatchCost(cost, index)

Bases: object

Object to abstract cost for comparisons

cost

the calculated cost to index

Type

float

index

the index that indicates the track the cost was calculated against

Type

int

pyatsyn.atsa.peak_tracking.are_valid_candidates(candidate1, candidate2, deviation)

Function to determine if the distance between two peaks are within the relative deviation constraint

Peaks are valid candidates for pair if their absolute distance is smaller than the frequency deviation multiplied by the lower of the candidate’s frequencies.

Parameters

• candidate1 (AtsPeak) – a candidate peak

• candidate2 (AtsPeak) – a candidate peak

• deviation (float) – relative frequency deviation

Returns

True if the candidates are within constrained range, False otherwise.

Return type

bool

pyatsyn.atsa.peak_tracking.find_track_in_peaks(track, peaks)

Function to search a the first peak found tagged a given track ind

Parameters

• track (int) – the track index to search for

• peaks (Iterable[AtsPeak]) – a collection of AtsPeak to search in

Returns

the first AtsPeak found in peaks that has a .track attribute matching track. If no matches are found, None is returned.

Return type

AtsPeak

pyatsyn.atsa.peak_tracking.peak_dist(pk1, pk2, alpha)

Function to calculate peak frequency distance

This function is used to calculate the cost for the peak matching algorithm and allows for psychoacoustic biasing of the calculation:

\(dist = \frac{|P1_{freq} - P2_{freq}| + \alpha * |P1_{smr} - P2_{smr}|}{1 + \alpha}\)

where \(P\#_{freq}\) is the peak’s frequency, and \(P\#_{smr}\) its SMR. \(\alpha\) is a coefficient controlling how much the SMR deviation affects the distance.

Parameters

• pk1 (AtsPeak) – a candidate peak

• pk1 – a candidate peak

• alpha (float) – percent of SMR to use to bias the result

Returns

the frequency distance (in Hz) between the peaks

Return type

float

pyatsyn.atsa.peak_tracking.peak_tracking(tracks, peaks, frame_n, analysis_frames, sample_rate, hop_size, frequency_deviation=0.45, SMR_continuity=0.0, min_gap_length=1)

Core function to coordinate peak tracking

This function coordinates the matching of new peaks with existing tracks using an adaptation of the Gale-Shapley algorithm for stable matching. The algorithm is gap-size aware and will monitor ‘slept’ tracks within the minimum gap distance as candidates. Linear interpolation is used to fill the gaps for frequency and amplitude, and a cubic polynomial interpolation for phase.

NOTE: Tracks, peaks, and analysis_frames are updated directly.

Parameters

• tracks (Iterable[AtsPeak]) – collection of established tracks

• peaks (Iterable[AtsPeak]) – collection of candidate peaks to match

• frame_n (int) – the current frame

• analysis_frames (Iterable[Iterable[AtsPeak]]) – a running collection storing the AtsPeak objects at each frame in time

• sample_rate (int) – the sampling rate (in samples / s)

• hop_size (int) – the inter-frame distance (in samples)

• frequency_deviation (float, optional) – maximum relative frequency deviation used to constrain peak tracking matches (default: 0.45)

• SMR_continuity (float, optional) – percentage of SMR to use in cost calculations during peak tracking (default: 0.0)

• min_gap_length (int) – tracked partial gaps longer than this (in frames) will not be interpolated (default: 1)

pyatsyn.atsa.peak_tracking.phase_interp(freq_0, freq_t, pha_0, t)

Function to compute linear phase interpolation

NOTE: currently not used in peak tracking, but supplied for legacy purposes

Assumes smooth linear interpolation, where the average frequency dictates phase rate estimate from the relative time 0 to time t.

Parameters

• freq_0 (float) – initial frequency (in Hz)

• freq_t (float) – frequency at time t (in Hz)

• pha_0 (float) – initial phase (in radians)

• t (float) – time (in s) from freq_0

Returns

the phase (in radians) at relative time t

Return type

float

pyatsyn.atsa.peak_tracking.phase_interp_cubic(freq_0, freq_t, pha_0, pha_t, i_samps_from_0, samps_from_0_to_t, sample_rate)

Function to interpolate phase using cubic polynomial interpolation

Uses cubic interpolation to determine and intermediate phase within the curve linking a particular frequency and phase at relative time 0, to a frequency and phase at time t.

The basis for this method is credited to:

MR. McAulay and T. Quatieri, “Speech analysis/Synthesis based on a sinusoidal representation,” in IEEE Transactions on Acoustics, Speech, and Signal Processing, vol. 34, no. 4, pp. 744-754, August 1986

doi: 10.1109/TASSP.1986.1164910.

Parameters

• freq_0 (float) – initial frequency (in Hz)

• freq_t (float) – frequency at time t (in Hz)

• pha_0 (float) – initial phase (in radians)

• pha_t (float) – phase at time t (in radians)

• i_samps_from_0 (int) – relative sample index i to interpolate at

• samps_from_0_to_t (int) – distance (in samples) from 0 to t

• sample_rate (int) – sampling rate (in samps/s)

Returns

the modeled phase (in radians) at sample i

Return type

float

pyatsyn.atsa.peak_tracking.update_track_averages(tracks, track_length, frame_n, analysis_frames, beta=0.0)

Function to update running averages of recent peaks

Using the list of current tracks, we use track_length frames to look back and update, the average amp, frq, and smr values for the tracks.

NOTE: Tracks are updated directly without return value.

Parameters

• tracks (Iterable[AtsPeak]) – iterable of tracks to update

• track_length (int) – how far back in time (in frames) to start average calculations

• frame_n (int) – the current frame

• analysis_frames (Iterable[Iterable[AtsPeak]]) – a running collection storing the AtsPeak objects at each frame in time

• beta (float, optional) – TOadditional bias for the immediately prior frames values when calculating smoothing trajectories (default: 0.0)

residual

Functions to Compute and Analyze Residual Signals

The reisidual signal is computed by taking the time-domain difference between the orignal sound and the sinusoidal synthesis of the spectral trajectories. NOTE: this section is under active research. Currently, this noise signal is analyzed using the STFT to obtain time-varying energy at 25 critical bands (see ATS_CRITICAL_BAND_EDGES)

pyatsyn.atsa.residual.band_to_energy(ats_snd, band_edges, use_smr=False)

Function to transfer band energies into partials

NOTE: Currently not fully supported. Included for legacy purposes.

Parameters

• ats_snd (AtsSound) – the ats object containing band energies

• band_edges (ndarray[float]) – 1D array of band edge frequencies (in Hz)

• use_smr (bool, optional) – whether to use smr instead of amplitude for scaling energy across partials (default: False)

pyatsyn.atsa.residual.compute_residual(ats_snd, in_sound, start_sample, end_sample, residual_file=None)

Function to computes the time domain difference between the sinusoidal synthesis of spectral trajectories in an ats_snd, and the original sound data

Parameters

• ats_snd (AtsSound) – the input ats object to compute the residual for

• in_sound (ndarray[float]) – the original sound signal from which to extract the residual

• start_sample (int) – sample in in_sound where the ats_snd begins

• end_sample (int) – sample in in_sound where the ats_snd ends

• residual_file (str, optional) – path to audio file to output residual signal to. None if no file output. (Default: None)

Returns

residual – a 1D array of floats containing the amplitudes of the computed residual in the time domain

Return type

ndarray[float]

pyatsyn.atsa.residual.remove_bands(ats_snd, threshold)

Function to remove bands and band_energies below a threshold

NOTE: ats_snd is updated directly

Parameters

• ats_snd (AtsSound) – the ats object storing band energies to threshold

• threshold (float) – energy threshold used to prune band energies and bands

pyatsyn.atsa.residual.residual_N(M, min_fft_size, factor=2)

Function to compute an FFT window size for residual analysis

Parameters

• M (int) – target window size

• min_fft_size (int) – restricts the minimum size of the FFT window

• factor (int, optional) – multiplicative window padding relative to M for calculating FFT window size(default: 2)

Returns

power-of-2 window size

Return type

int

pyatsyn.atsa.residual.residual_analysis(residual, ats_snd, min_fft_size=4096, equalize=False, pad_factor=2, band_edges=None, par_energy=False, verbose=False)

Function to compute noise energy in a residual signal across 25 critical bands

Noise energy in each critical band is evaluated in the following way:

\(E[i] = \frac{1}{K} \sum^{k_{i0} + K - 1}_{k= k_{i0}} |X(k)|^2\)

where \(i\) is the band number (0 to 24), \(K\) is the number of bins of the STFT where the band \(i\) has frequency information. \(k_{i0}\) is the lowest STFT bin where band \(i\) has information, and \(X\) is the amplitude data for a given bin \(k\).

The algorithm evaluates the noise energy at each step of the Bark scale.

Parameters

• residual (ndarray[float]) – a 1D array of floats containing the amplitudes of the residual signal in the time domain

• ats_snd (AtsSound) – the input ats object to store the residual analysis in

• min_fft_size (int, optional) – restricts the minimum size of the FFT window (default: 4096)

• equalize (bool, optional) – equalize noise energy in the frequency domain to the time domain energy using Parseval’s Theorem (default: False)

• pad_factor (int, optional) – multiplicative window padding relative to ats_snd.window_size for calculating FFT window size (default: 2)

• band_edges (ndarray[float]) – 1D array containing 26 frequencies that distinguish the default 25 critical bands. If None, will use ATS_CRITICAL_BAND_EDGES (default: None)

• par_energy (bool) – whether to transfer noise energy to partials. NOTE: currently not fully supported; only for legacy support (default: False)

• verbose (bool, optional) – increase verbosity (default: False)

pyatsyn.atsa.residual.residual_compute_band_energy(fft_mags, band_limits, band_energy, frame_n)

Function to compute the band energy

Energy in each band is evaluated in the following way:

\(E[i] = \frac{1}{K} \sum^{k_{i0} + K - 1}_{k= k_{i0}} |X(k)|^2\)

where \(i\) is the band number (0 to 24), \(K\) is the number of bins of the STFT where the band \(i\) has frequency information. \(k_{i0}\) is the lowest STFT bin where band \(i\) has information, and \(X\) is the amplitude data for a given bin \(k\).

NOTE: band_energy is updated directly

Parameters

• fft_mags (ndarray[float]) – 1D array of frequency domain amplitudes

• band_limits (ndarray[int]) – 1D array of bin indicies mapping band edge frequencies to bins in FFT frequency domain

• band_energy (ndarray[float]) – 2D array to store band energies for each band at each frame

• frame_n (int) – the current frame

pyatsyn.atsa.residual.residual_get_band_limits(fft_mag, band_edges)

Function to convert band edges to FFT bin indices

Parameters

• fft_mag (float) – FFT magic number - sampling rate / FFT window size

• band_edges (ndarray[float]) – 1D array of band edge frequencies (in Hz)

Returns

band_limits – 1D array of bin indicies mapping band edge frequencies to bins in FFT frequency domain

Return type

ndarray[int]

tracker

Main ATS Analysis Function

The analysis tracker is responsible for driving the analysis of an audio file into the .ats format. The system uses a Short Time Fourier Transform (STFT) as is core analysis tool. Sound is analyzed using overlapping time windows and by taking the STFT on each window.

After converting to polar coordinates, a peak detection algorithm (peak_detection) determines relevant spectral peaks in the data. At this point, pyschoacoustics are considered in the form of masking curve evaluation and computation of the Signal-to-Mask ratio (SMR) for each candidate peak. SMR data is store together with a corrected frequency, magnitude and phase.

The next step involves frame-to-frame tracking of peaks (peak_tracking) to connect peaks that follow a similar spectral trajectory using both frequency and SMR data. The system uses a stable matching algorithm to pair candidate peaks, and is capable of interpolating gaps in the tracks.

Once valid tracks are assembled, the results can be modeled with sinusoids (atsa_synth) and subtracted from the origin source sound to compute a residual. NOTE: This part of the ATS system is currently under active research. For now, the residual analysis (residual) is modeled using a 25 time-varying critical noise band energy model (consistent with the critical bands used during SMR evaluation). These noise bands can then be resynthesized using 25 correspoding banks of time-enveloped, band-limited noise.

Analysis is finally stored and abstracted as an AtsSound object.

pyatsyn.atsa.tracker.tracker(in_file, start=0.0, duration=None, lowest_frequency=20, highest_frequency=20000.0, frequency_deviation=0.1, window_cycles=4, window_type='blackman-harris-4-1', hop_size=0.25, fft_size=None, amp_threshold=0.001, track_length=3, min_gap_length=3, min_segment_length=3, last_peak_contribution=0.0, SMR_continuity=0.0, residual_file=None, optimize=True, optimize_amp_threshold=None, force_M=None, force_window=None, window_alpha=0.5, window_beta=1.0, verbose=False)

Function to generates an Analysis-Transformation-Synthesis AtsSound from an audio file

Parameters

• in_file (str) – path to the audio file to analyze (must be single channel/mono)

• start (float) – timepoint (in s) in audiofile to begin analysis (default: 0.0)

• duration (float) – max duration (in s) in audiofile from start to end analysis or ‘None’ if analyze to end (default: None)

• lowest_frequency – lowest frequency to analyze (must be > 0) (default: 20)

• highest_frequency (float) – highest frequency to analyze (capped to nyquist frequency and must be greater than lowest_frequency) (default: 20000.0)

• frequency_deviation (float) – maximum relative frequency deviation used to constrain peak tracking matches (default: 0.1)

• window_cycles (int) – lowest frequency to fit in analysis window; used to determine window size (default: 4)

• window_type (str) – type of window to use for FFT analysis (default: ‘blackman-harris-4-1’). See VALID_FFT_WINDOW_DEFINITIONS

• hop_size (float) – fraction of window size to shift from frame-to-frame (default: 0.25)

• fft_size (int) – None, or force an fft size (default: None)

• amp_threshold (float) – lowest amplitude used for peak detection (default: 0.001)

• track_length (int) – number of frames used to smooth frequency trajectories (default: 3)

• min_gap_length (int) – tracked partial gaps longer than this (in frames) will not be interpolated (default: 3)

• min_segment_length (int) – minimal size (in frames) of a track segment, otherwise it is pruned (default: 3)

• last_peak_contribution (float) – additional bias for the immediately prior frames values when calculating smoothing trajectories (default: 0.0)

• SMR_continuity (float) – percentage of SMR to use in cost calculations during peak tracking (default: 0.0)

• residual_file (str) – path to the audio file used to store residual analysis. NOTE: noise calculation will not be performed in .ats file without this (default: None)

• optimize (bool) – whether to perform the post-peak tracking optimization on the AtsSound object (default: True)

• optimize_amp_threshold (float) – additional amplitude threshold used during optimization to prune tracks (default: None)

• force_M (int) – None, or a forced window length in samples (default: None)

• force_window (ndarray[float]) – None, or a 1D array describing a windowing curve (default: None)

• window_alpha (float) – parameter used for calculating tukey windows (default: 0.5)

• window_beta (float) – parameter used for calculating certain window types (default: 1.0)

• verbose (bool) – increase verbosity (default: False)

Returns

the ats object that represents the analysis of the input audio file

Return type

AtsSound

Raises

• ValueError – if input file is not single channel/mono

• ValueError – if lowest_frequency is < 0.0

• ValueError – if highest_frequency is < lowest_frequency

pyatsyn.atsa.tracker.tracker_CLI()

Command line wrapper for tracker

Example

Display usage details with help flag

$ pyatsyn-atsa -h

Analyze a wav file

$ pyatsyn-atsa example.wav example.ats

Analyze a wav file and compute the residual and increase verbosity

$ pyatsyn-atsa example.wav example.ats -v -r example-residual.wav

utils

Utility Functions for ATS Analysis

pyatsyn.atsa.utils.MAX_DB_SPL

maximum DB_SPL level; used for converting amplitude units

Type

float

pyatsyn.atsa.utils.ATS_MIN_SEGMENT_LENGTH

default minimum segment length

Type

int

pyatsyn.atsa.utils.ATS_AMP_THRESHOLD

default amp threshold

Type

float

pyatsyn.atsa.utils.ATS_NOISE_THRESHOLD

default noise threshold

Type

float

pyatsyn.atsa.utils.amp_to_db(amp)

Function to convert amplitude to decibels: \(20 * \log_{10}{amp}\)

Parameters

amp (float) – an amplitude value

Returns

the converted decibel value

Return type

float

pyatsyn.atsa.utils.amp_to_db_spl(amp)

Function to convert amplitude to decibel sound pressure level (dB SPL)

Parameters

amp (float) – an amplitude value

Returns

the converted dB SPL value

Return type

float

pyatsyn.atsa.utils.compute_frames(total_samps, hop)

Function to compute the number frames to use in the specified analysis.

Calculates an extra frame to prevent attenuation during windowing at the tail and to allow for interpolation at the end of the soundfile.

Parameters

• total_samps (int) – number of samples in analyzed sound duration

• hop (int) – interframe distance in samples

Returns

number of frames to use for STFT analysis

Return type

int

pyatsyn.atsa.utils.db_to_amp(db)

Function to convert decibels to amplitude: \(10^{dB / 20.0}\)

Parameters

db (float) – a decibel value

Returns

the converted amplitude value

Return type

float

pyatsyn.atsa.utils.next_power_of_2(num)

Function to return the closest power of 2 integer more than or equal to an input

Parameters

num (int) – a positive integer

Returns

the closest power of 2 integer more than or equal to num

Return type

int

pyatsyn.atsa.utils.optimize_tracks(tracks, analysis_frames, min_segment_length, amp_threshold, highest_frequency, lowest_frequency)

Function to run optimization routines on the established tracks.

The optimizations performed are:

• trim short partials

• calculate and store maximum and average frq and amp

• prune tracks below amplitude threshold

• prune tracks outside frequency constraints

• sort and renumber tracks and peaks in analysis_frames according to average frq

NOTE: directly updates analysis_frames, pruning peaks corresponding to pruned tracks.

Parameters

• tracks (Iterable[AtsSound]) – collection of established tracks

• analysis_frames (Iterable[Iterable[AtsPeak]]) – a collection storing the AtsPeak objects at each frame in time

• min_segment_length (int) – minimal size (in frames) of a valid track segment, otherwise it is pruned

• amp_threshold (float) – amplitude threshold used to prune tracks. If None, will default to ATS_AMP_THRESHOLD converted to amplitude.

• highest_frequency (float) – upper frequency threshold, tracks with maxima above this will be pruned

• lowest_frequency (float) – lower frequency threshold, tracks with minima below this will be pruned

Returns

tracks – the optimized subset of input tracks

Return type

Iterable[pyatsyn.ats_structure.AtsPeak]

windows

Functions to Generate FFT Windows

A collection of window utilies to generate several useful window types:

blackman-exact	kaiser	cauchy
blackman	gaussian	connes
blackman-harris-3-1	poisson	exponential
blackman-harris-3-2	cauchy	bartlett
blackman-harris-4-1	connes	riemann
blackman-harris-4-2	welch	tukey
rectangular	kaiser	hamming
parzen	gaussian	hann
welch	poisson	hann-poisson

Most equations are adapted from the following two papers:

F. J. Harris, “On the use of windows for harmonic analysis with the discrete Fourier transform,” in Proceedings of the IEEE, vol. 66, no. 1, pp. 51-83, Jan. 1978.

doi: 10.1109/PROC.1978.10837.

A. Nuttall, “Some windows with very good sidelobe behavior,” in IEEE Transactions on Acoustics, Speech, and Signal Processing, vol. 29, no. 1, pp. 84-91, February 1981

doi: 10.1109/TASSP.1981.1163506.

pyatsyn.atsa.windows.VALID_FFT_WINDOW_DEFINITIONS

a list of supported window types

Type

list[str]

pyatsyn.atsa.windows.ATS_BLACKMAN_WINDOW_COEFF_LABELS

A dictionary to match blackman window type strings to their coefficients

Type

dict[str : list[float]]

pyatsyn.atsa.windows.bes_i0(x)

Modified Bessel Function of the First Kind from “Numerical Recipes in C”

Parameters

x (float) – Bessel function input

Returns

Bessel function output

Return type

float

pyatsyn.atsa.windows.make_blackman_window(window_type, size)

Helper function to build Blackman windows

Parameters

• window_type (str) – the type of blackman window (supported types are defined in ATS_BLACKMAN_WINDOW_COEFF_LABELS)

• size (int) – the size of the window to generate

Returns

a 1D array of floats representing the window

Return type

ndarray[float]

pyatsyn.atsa.windows.make_fft_window(window_type, size, beta=1.0, alpha=0.5)

Function to build the specified window

Parameters

• window_type (str) – the type of window (supported types are defined in VALID_FFT_WINDOW_DEFINITIONS)

• size (int) – the size of the window to generate

• beta (float, optional) – parameter used in certain window calculations (float: 1.0)

• alpha (float, optional) – parameter used in tukey window calculation (float: 0.5)

Returns

a 1D array of floats representing the window

Return type

ndarray[float]

Raises

ValueError – if window_type is not one of the supported window types in VALID_FFT_WINDOW_DEFINITIONS

pyatsyn.atsa.windows.normalize_window(window)

Function to normalize a window

Normalization here means that the window will integrate to 1.0 (i.e., total area of 1)

Parameters

window (ndarray[float]) – the window to normalize

Returns

a normalized version of the input window

Return type

ndarray[float]

pyatsyn.atsa.windows.window_norm(window)

Function to compute the norm of a window

\(norm = \frac{1}{\sum | x |}\) where \(x\) are the window samples

Parameters

window (ndarray[float]) – the window from which to calculate a norm

Returns

the norm of the window

Return type

float
